伊马胶体HM2系列

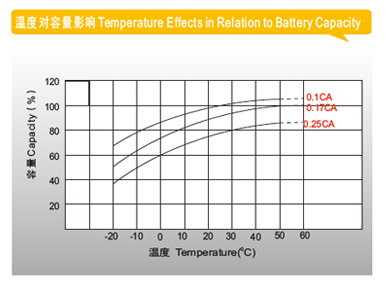

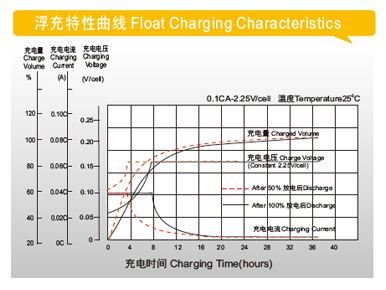

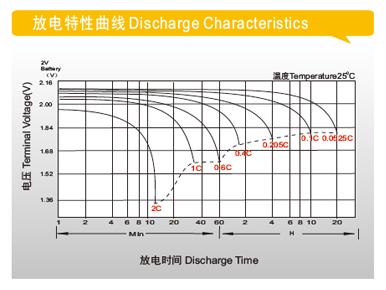

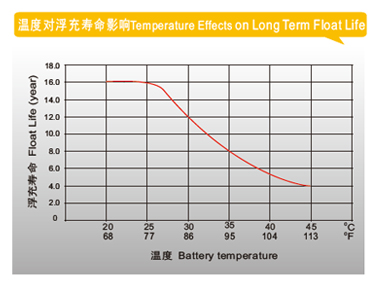

曲线图片
产品规格表
|
|
|
|
产品规格表
| 型号 | 额定电压(V) | C20/Ah | C10/Ah | 外形尺寸(mm) | 端子规格 | |||
| 长/L | 宽/B | 高/H | 总高/TH | |||||
| HM2200 | 2 | 212 | 200 | 170 | 110 | 328 | 348 | T11 |
| HM2300 | 2 | 318 | 300 | 170 | 150 | 328 | 348 | T11 |
| HM2350 | 2 | 371 | 350 | 170 | 150 | 330 | 350 | T11 |
| HM2400 | 2 | 424 | 400 | 210 | 175 | 330 | 350 | T11 |
| HM2500 | 2 | 530 | 500 | 240 | 175 | 330 | 350 | T11 |
| HM2600 | 2 | 636 | 600 | 300 | 175 | 330 | 350 | T11 |
| HM2800 | 2 | 848 | 800 | 410 | 175 | 330 | 350 | T11 |
| HM21000 | 2 | 1060 | 1000 | 475 | 175 | 328 | 350 | T11 |
| HM21200 | 2 | 1272 | 1200 | 475 | 175 | 328 | 350 | T11 |
| HM21500 | 2 | 1590 | 1500 | 403 | 354 | 339 | 349 | T11 |
| HM22000 | 2 | 2120 | 2000 | 490 | 350 | 339 | 349 | T11 |
| HM22500 | 2 | 2650 | 2500 | 490 | 350 | 339 | 349 | T11 |
| HM23000 | 2 | 3180 | 3000 | 709 | 350 | 337 | 347 | T11 |
| HM2200M | 2 | 212 | 200 | 90 | 181 | 350 | 365 | T11 |
| HM2300M | 2 | 318 | 300 | 124 | 181 | 350 | 365 | T11 |
| HM2400M | 2 | 424 | 400 | 158 | 181 | 350 | 365 | T11 |
| HM2500M | 2 | 530 | 500 | 191 | 181 | 350 | 365 | T11 |
| HM2600M | 2 | 636 | 600 | 225 | 181 | 350 | 365 | T11 |
| HM2800M | 2 | 848 | 800 | 303 | 181 | 350 | 365 | T11 |
| HM21000M | 2 | 1060 | 1000 | 370 | 181 | 350 | 365 | T11 |
